MacSema Hardware

Manufactured in the U.S.A.

Please select the hardware.

ButtonMemory® ButtonLink Handhelds Downloaders Accessories

ButtonMemory®

MacSema’s Contact Memory Button (CMB) a battery-free, read/write electronic data storage tag designed for survival in extreme environments including military, aerospace, utility, transportation and industrial applications. CMBs store up to 4GB of any type of data to enhance configuration, inspection and maintenance management for the life of the asset the CMB is attached to. Data is retrieved and updated by contact using a ButtonLink probe. CMB technology eliminates time and inconvenience associated with accessing a central database. Information is viewable and updateable on site. Survives hostile conditions such as temperature extremes, radiation, ESD, EMI, EMP, shock and vibration. Each CMB has a unique serial number. Exceeds Mil-Std – 810F.

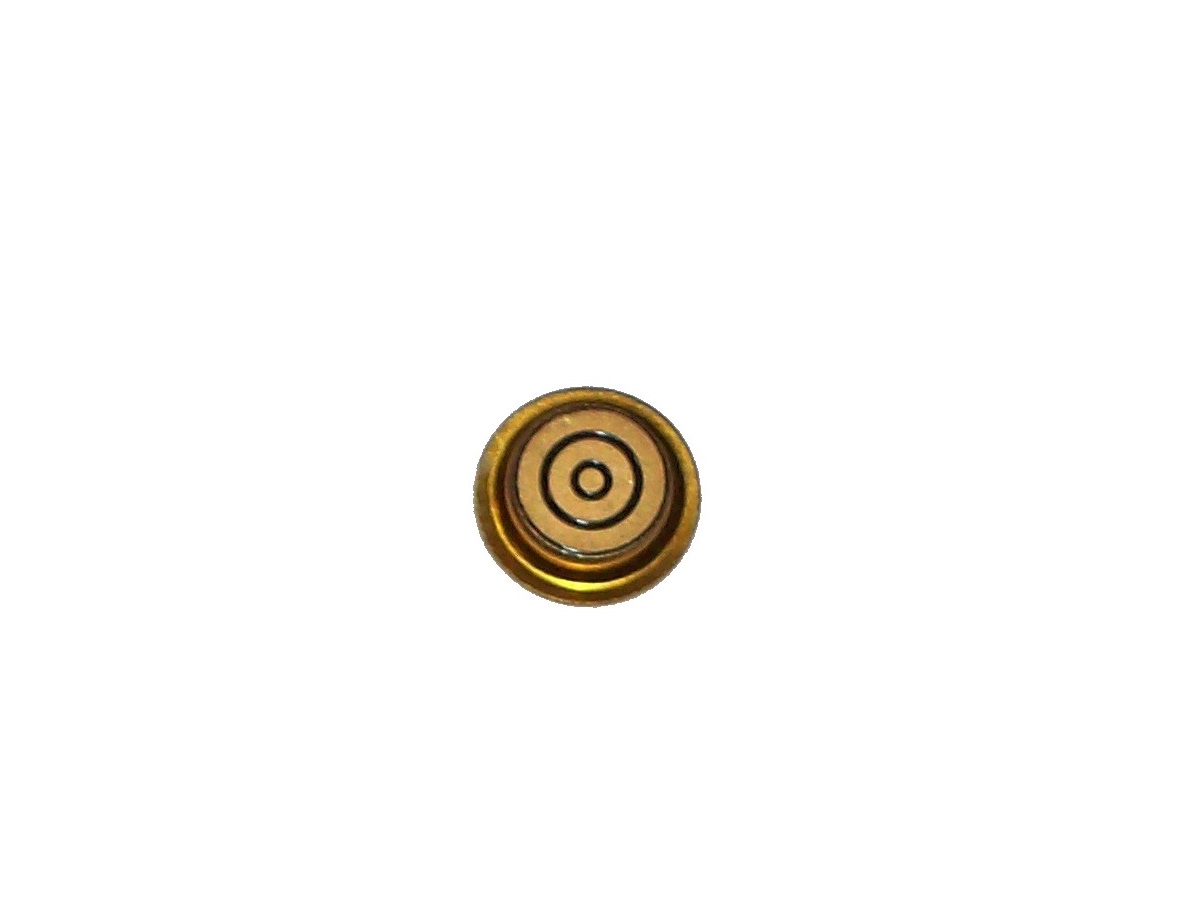

MicroButton

Micro

4KB or 8KB
0.17 grams
2.11mm x 7.56mm

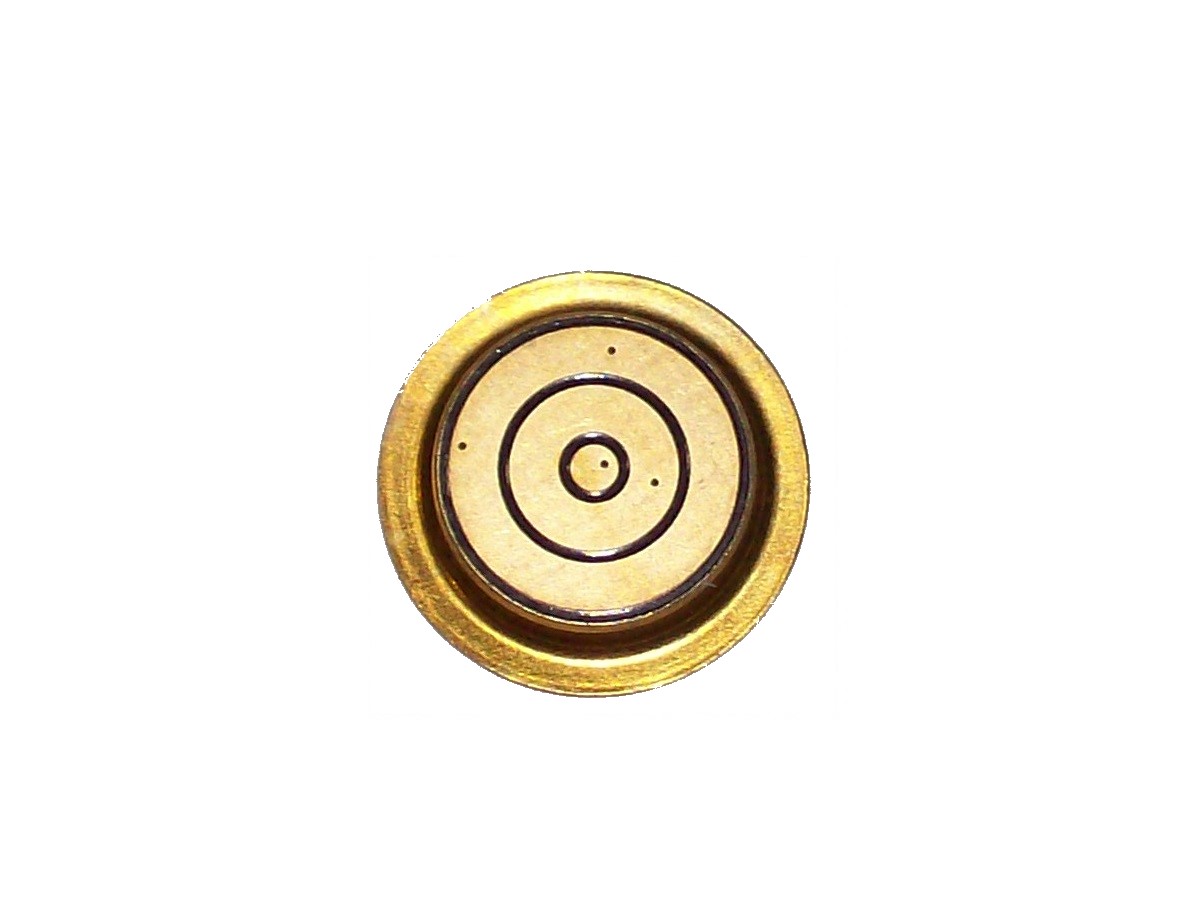

MiniButton

Mini

128, 256, 2KB, 8KB, 32KB, 64KB
0.77 grams
2.8mm x 14.3mm

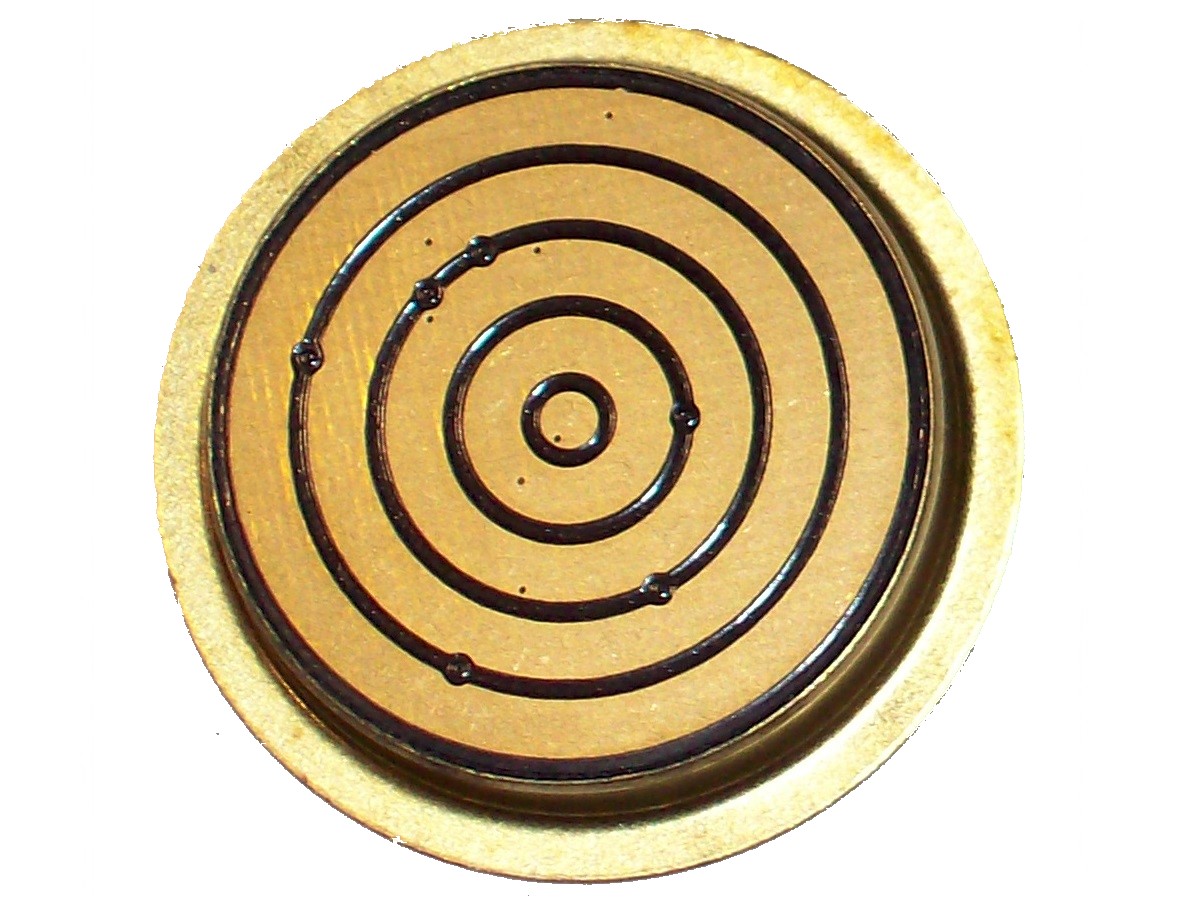

MegaButton

Mega

1MB, 2MB, 4MB, 8MB, 256MB, 512MB, 1GB, 2GB, 4GB
5.0 grams
5.1mm x 28.6mm
ButtonMemory® Catalog

ButtonMemory® Spec. Sheet

MacSema Handhelds

BC3100

BC3100

Bar Code Reader
4 Line Display

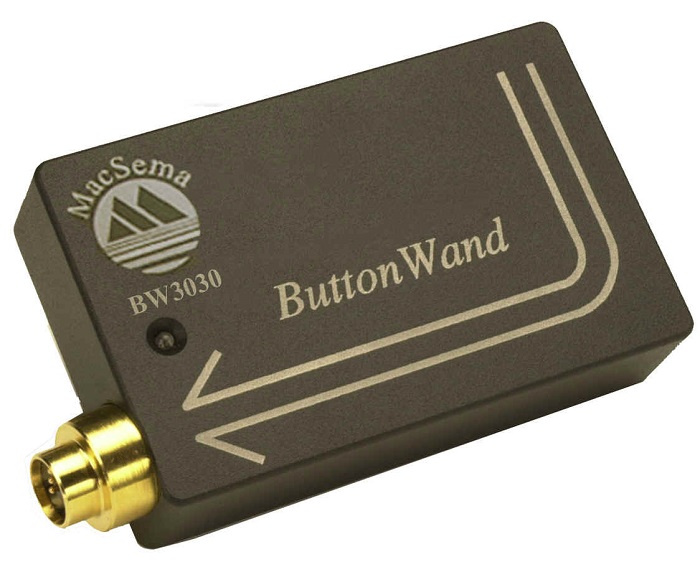

BW3030

BW3030

ButtonWand
No Display
Mini Read Head

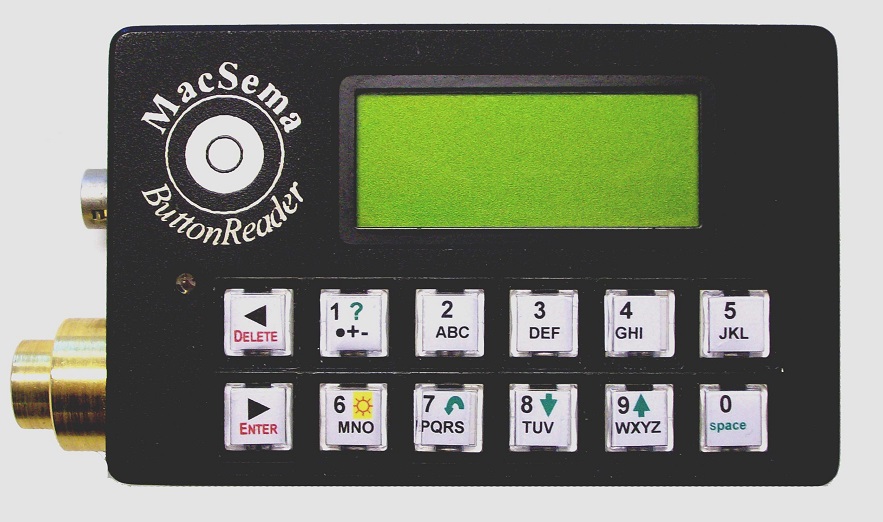

BR3050

BR3050

ButtonReader
4 Line Display
Mini Read Head

MacSema Downloaders

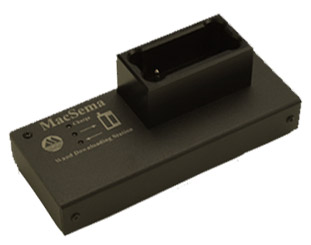

DL3000

DL3000

Series 3
Standard Width
Holds BW3030 and BR3050 Handhelds
DL3100

DL3100

Single Station
Slim line
Holds BC3100 Handheld

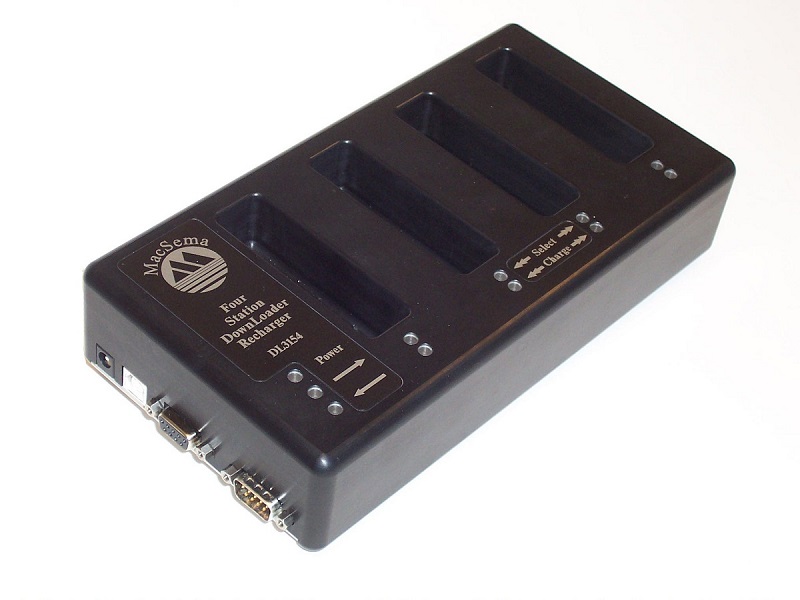

DL3154

DL3154

4 Station
Slim line
Holds BC3100 Handhelds
Downloader Spec. Sheet

Accessories

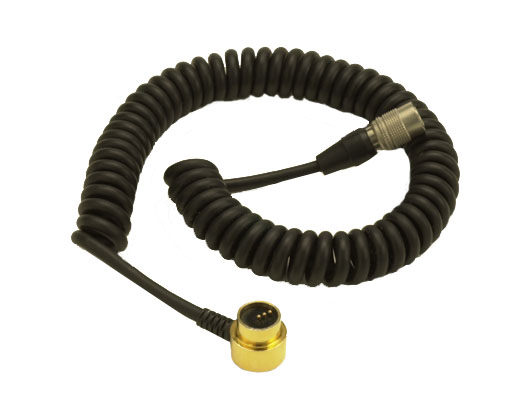

AFT301

AFT301

Mini Fingertip Reader
Connects to equipped BW3030 and BR3050 Handhelds

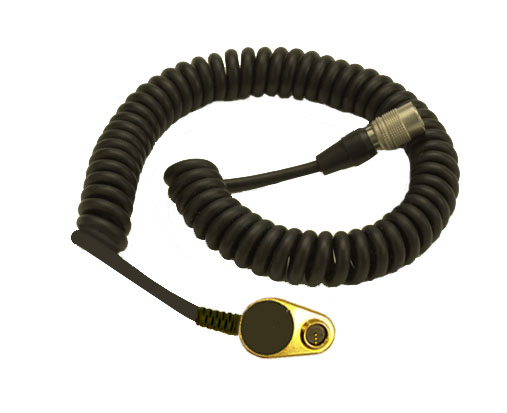

AFT304

AFT304

Dual (Mini/Micro) Fingertip Reader
Connects to equipped BW3030 and BR3050 Handhelds
Battery Pack

Battery Pack

Battery Pack
Series 3 Handhelds
